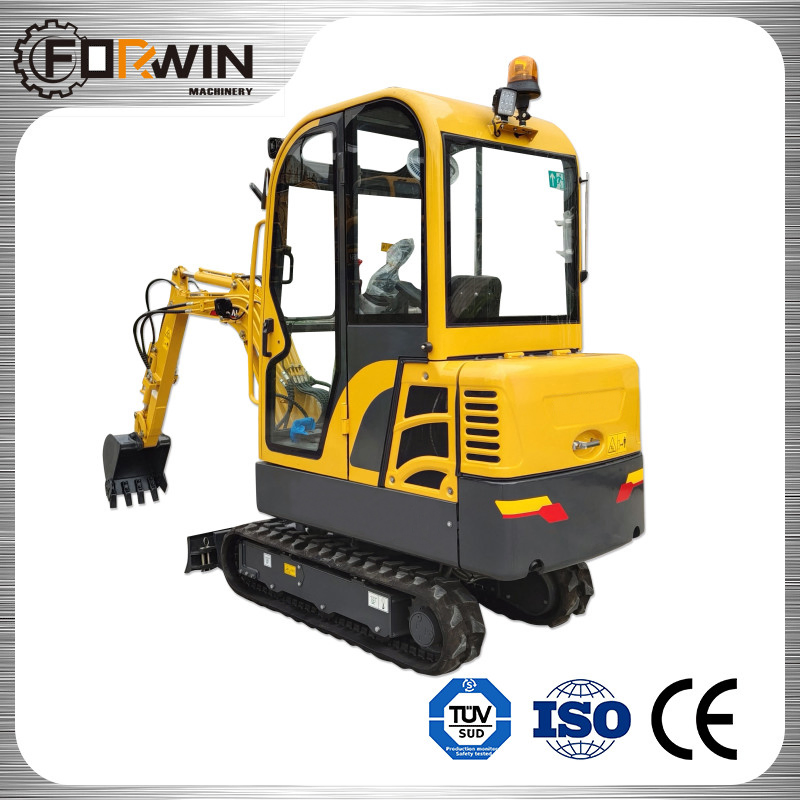

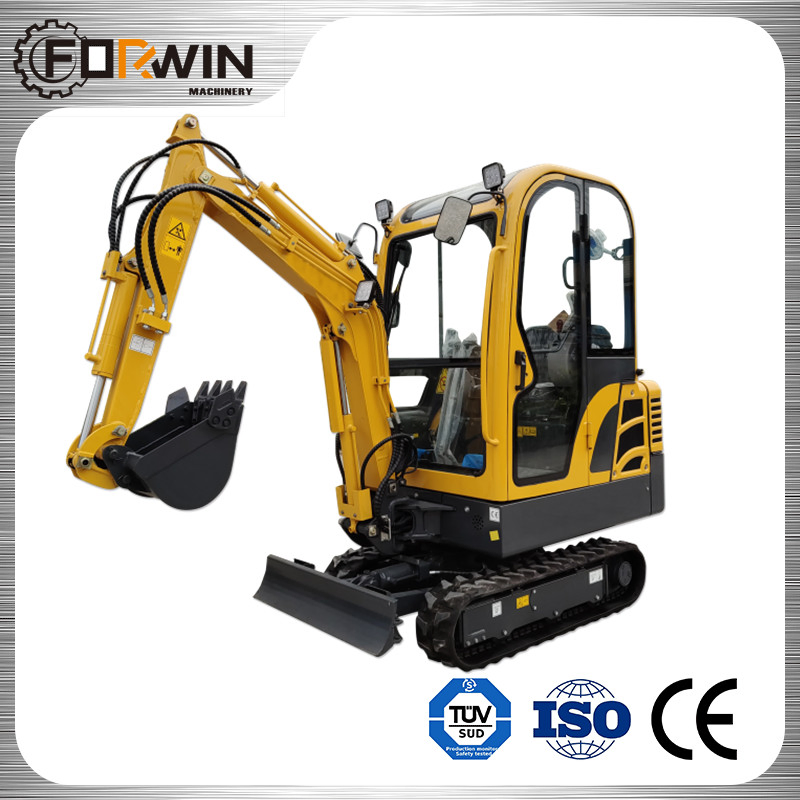

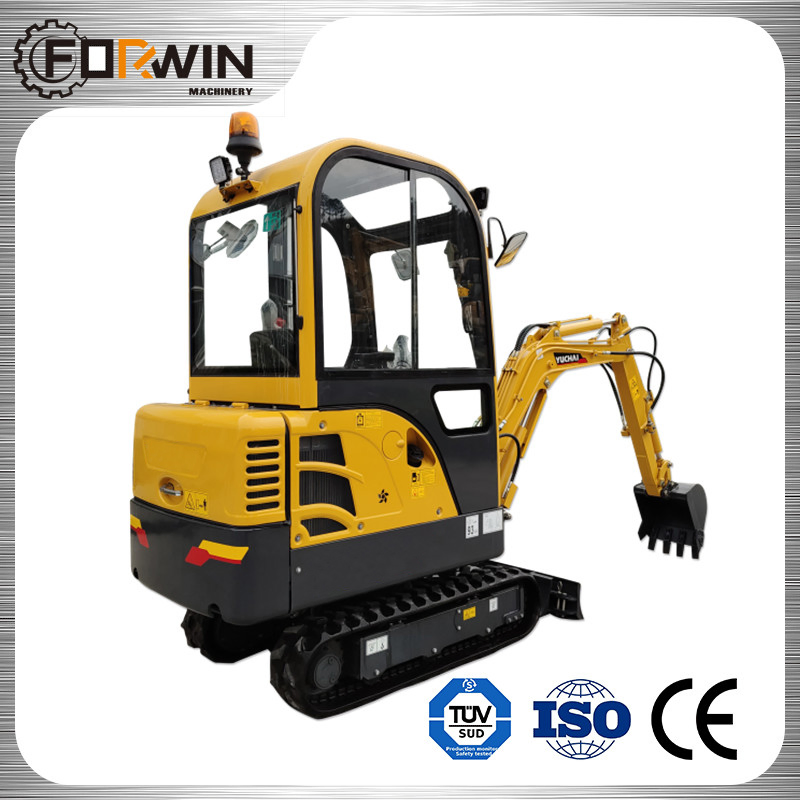

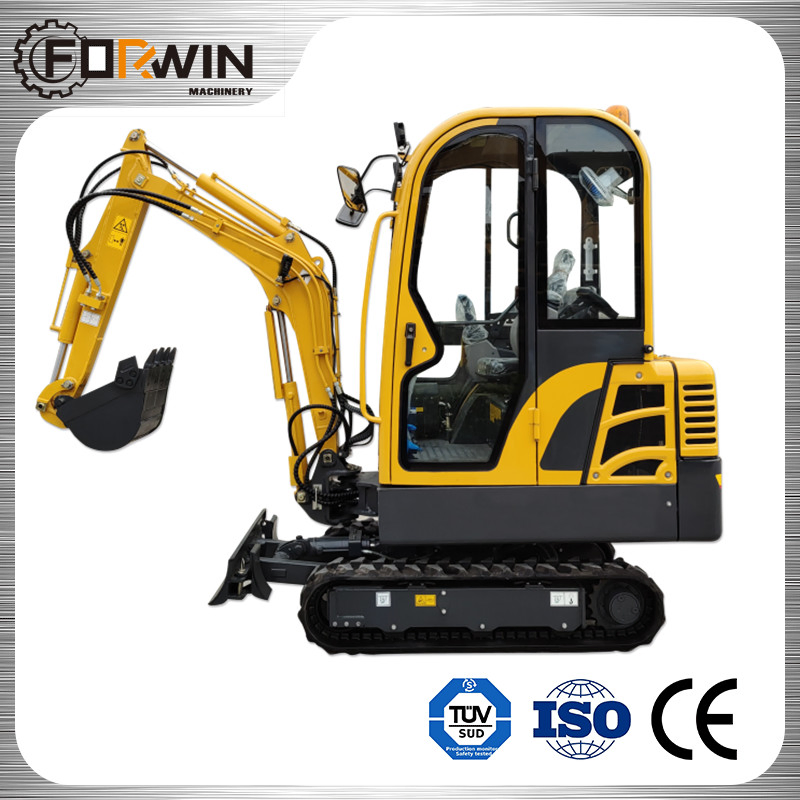

Municipal Engineering Customized Backhoe Single Bucket Hydraulic 1.8ton Mini Crawler Excavators with Reliable Performance for Sale

Product Description

Municipal engineering Customized Backhoe Single Bucket Hydraulic 1.8ton Mini Crawler Excavators with reliable performance for Sale

Advantages of the model FW18-9B loader:

1. All choose the best domestic and international ingredients, the quality is reliable and meet the needs of humanization.

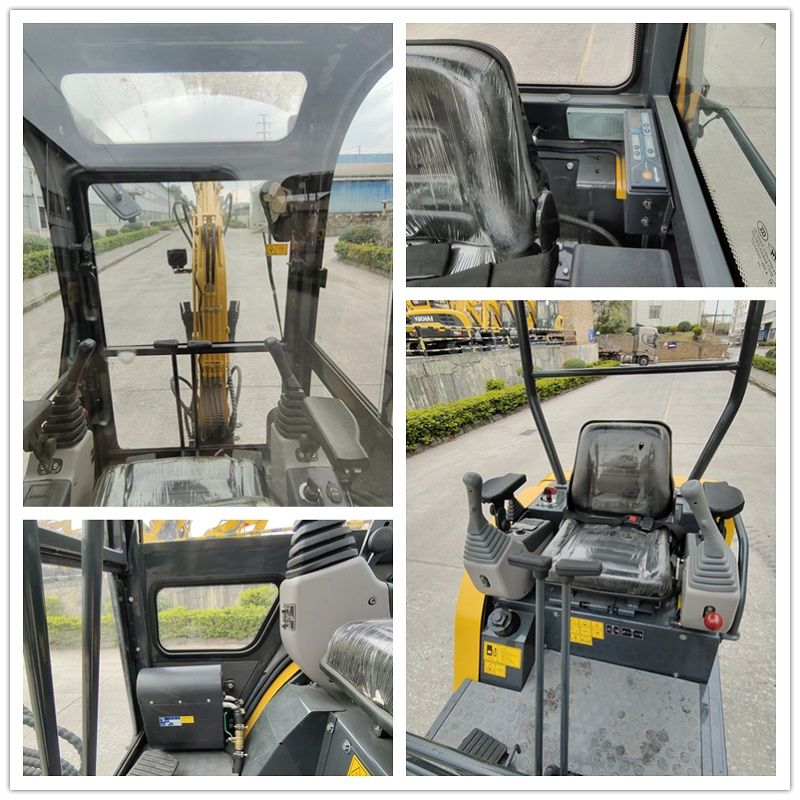

2. European style appearance and luxurious interior cab; full glass side door with wide view.

3. The brake tube is equipped with a protective sleeve, which can effectively prevent the brake tube from being smashed by the material and greatly improve the safety performance; the unique external introduction setting of the refueling nozzle makes it easy to inject oil and is easy to concentrate on filling butter.

4. Fine pipeline design and rational pipeline layout, beautiful and practical, easy to repair.

5. The bucket is flattened automatically to reduce the fatigue strength of the driver.
Municipal Engineering Customized Backhoe Single Bucket Hydraulic 1.8ton Mini Crawler Excavators with Reliable Performance for Sale

Product Parameters:

Excavator Model		FW18-9B
Excavator Model		Euro V emission
Basic parameter
Machine weight	kg	1850
Bucket capacity	m³	0.05
Width of bucket	mm	469
Performance parameter
Engine model		Yanmar 3TNV76-PYU
Engine power	kW/rpm	13.3/2200
Max. Gradeability		30°
Max. digging force of arm	kN	12.5
Max. digging force of bucket	kN	8
Traveling speed	km/h	4/2
Max. hauling force	kN	18.1
Slewing speed of platform	rpm	10~12
Operating parameter
Max. digging height	mm	2940
Max. digging depth	mm	1895
Max. digging radius	mm	3645
Max. digging radius on ground level	mm	3540
Max. dumping height	mm	1955
Min. slewing radius	mm	1720
Max. vertical digging depth	mm	1225
Transportation dimension
Overall length	mm	3595
Overall width	mm	990
Overall height	mm	2340(Cabin)
Other Parameter
Width of undercarriage	mm	1000-1300
Length of track	mm	1585
Width of track	mm	230
Height between undercarriage and ground	mm	180
Height between platform and ground	mm	460
Platform tail turning radius	mm	1140
Track gauge	mm	760
Fuel tank capacity	L	20
Hydraulic oil tank capacity	L	22
Type and flow rate of pump	L/min	Constant Flow Pump 2*17.6+6.6

Product Details:

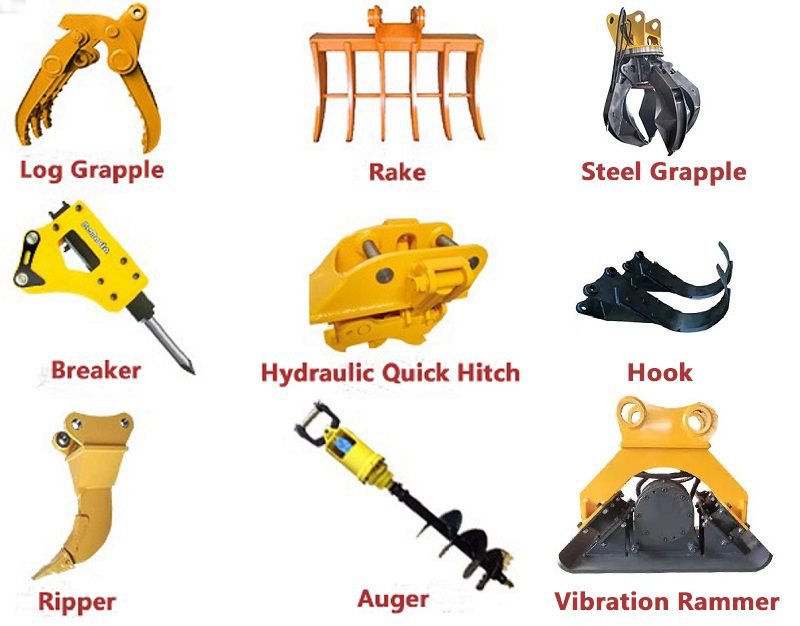

Optional attachments:

Our wheel excavator is multifunctional; We offer many optional attachments which could be used in different fields.
Auger, Breaking hammer,Grab bucket,Rake,Ripper,Rotating grapple,Small bucket and so on.
Municipal Engineering Customized Backhoe Single Bucket Hydraulic 1.8ton Mini Crawler Excavators with Reliable Performance for Sale

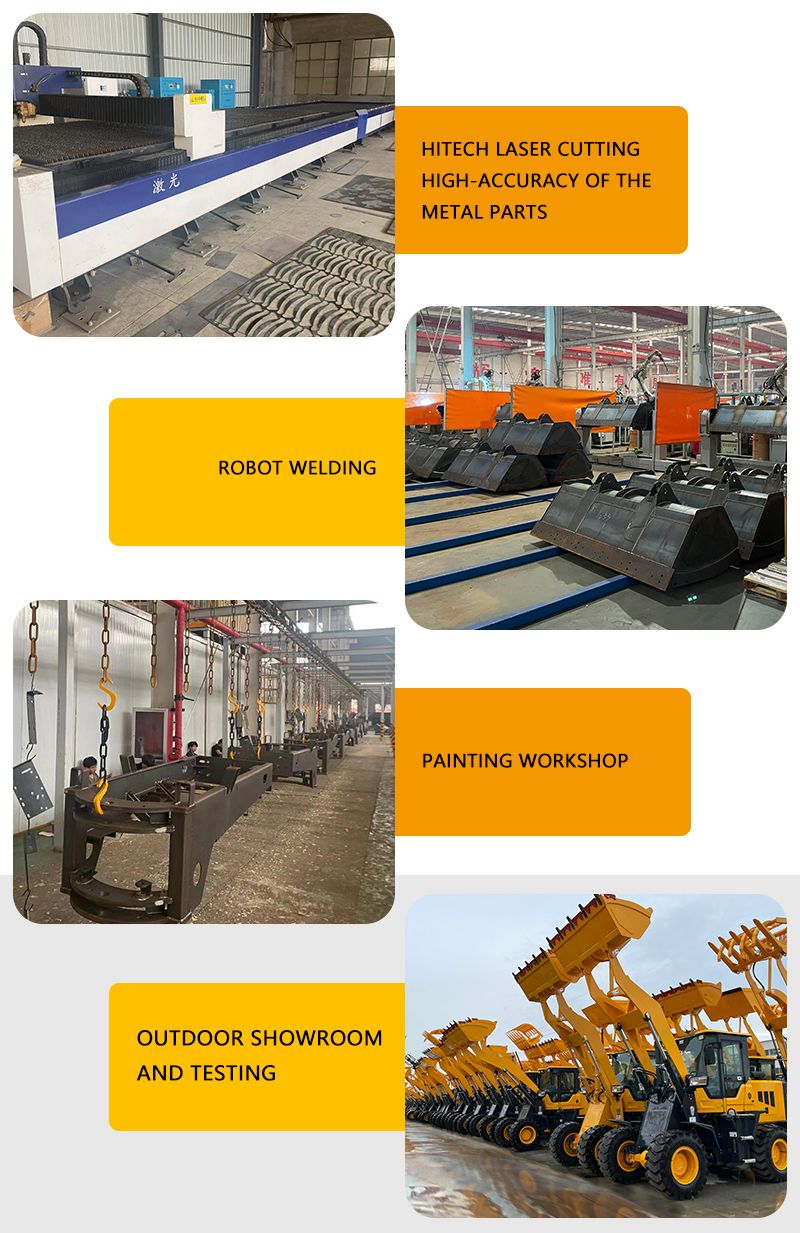

Production workshop:

Packaging&Shipping:

Our Certificates:

Municipal Engineering Customized Backhoe Single Bucket Hydraulic 1.8ton Mini Crawler Excavators with Reliable Performance for Sale

Our Company:

Production Environment:

FAQ:

Q1: Are you original manufacture?
Yes, we are an official leading manufacture in construction machinery in China.

Q2: Which country do you export to?
Our models already exported to more than 20 countries in Europe, including Germany, Austria, Poland, Czech, Greece, Sweden... and other countries, Canada, Philippine, Vietnam, Australian. We set our own showroom and warehouse in Poland and Philippine.

Q3: What is the proportion of your products export?
75% of our products are exported to all over the world.

Q4: What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT,L/C, D/P, depending on the cooperation time, country and contract value.

Q5: What kind of logistic service do you supply?
FOB, CIF, DAP, ETC

Q6: What about the delivery time?
7-15 days after receiving the deposit.
