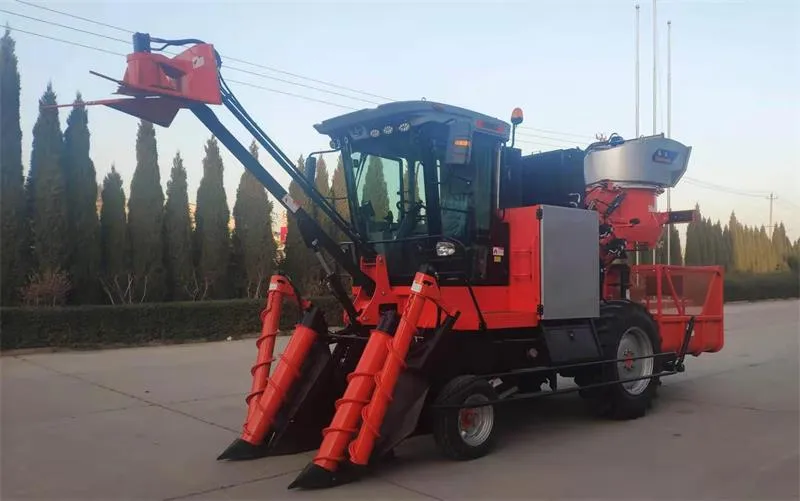

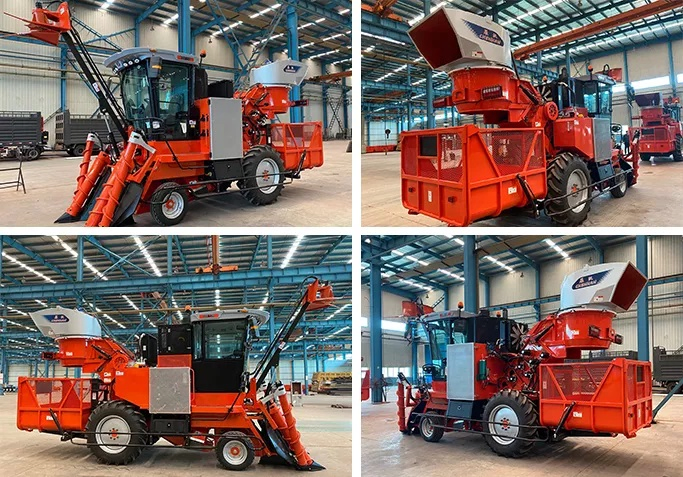

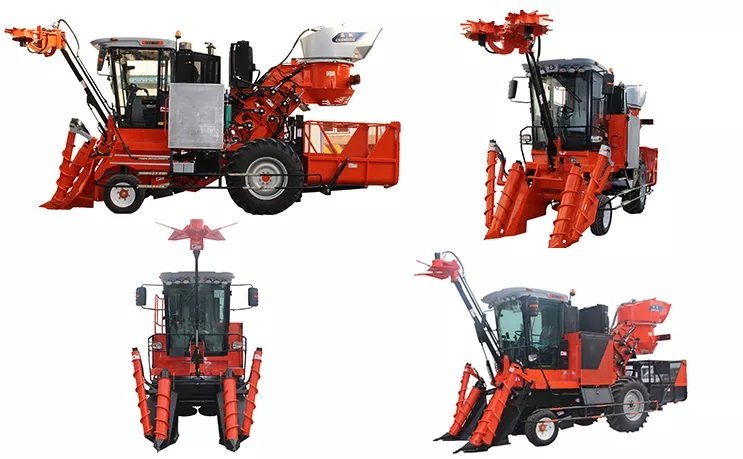

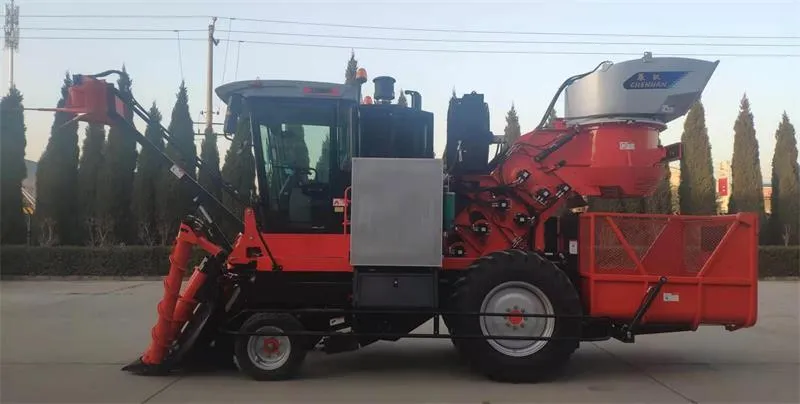

Matchet, Cane Stalk Cutting Machine, Cane Stalk Cutter, Cutter for Cane Stalk
ModelSH310Power180Hp @2200Fuel Consumption Than2.2-3.0L/THomework Spaced≥1100mmMinimum Bending Radius5500mmMax. Gradability25%Pure Work Efficiency≥20t/hImpurity Rate≤8%Total Loss≤7%Harvest Speed≤9km/hEngine BrandBosch, GermanyTravel Driving TypeHydraulic driveDrive......
Send Inquiry
Product Description
| Model | SH310 |
| Power | 180Hp @2200 |
| Fuel Consumption Than | 2.2-3.0L/T |
| Homework Spaced | ≥1100mm |
| Minimum Bending Radius | 5500mm |
| Max. Gradability | 25% |
| Pure Work Efficiency | ≥20t/h |
| Impurity Rate | ≤8% |
| Total Loss | ≤7% |
| Harvest Speed | ≤9km/h |
| Engine Brand | Bosch, Germany |
| Travel Driving Type | Hydraulic drive |
| Drive Qty | 2 |
| Min. Ground Clearance | 320mm |
| Adjustable Range Of Cutting Device | 400mm |
| Structural Model | double disc cutting |
| Max. Diameter Of Rotation | 555 mm |
| Rotated Speed | 840 r/min |
| Blade Qty | 4 |
| Average Ground Pressure | 6.2Kpa |
| Machine Weight | about 8100 kgs |
| Collection Weight | About 1300 kgs |
| Discharge Way Of Sugarcane | Jicun type high discharge |
| Overall Dimension | About 8550x2450x3800mm (L x W x H) |
| Not all technical parameters listed, contact us for more information We reserves the right to revise the above parameters at the final engineering stage with the prior notice to customer | |
Technical Features:
1. 180 HP Bosch engine High pressure common rail system, powerful & fuel-efficient
2. Adopt high discharge proprietary technology, with special transportation vehicles, more convenient unloading, more harvest efficient
3. Adopt whole girder patented technology, lower machine center gravity, walk steadily, driving comfortable, faster turnarounds, which could adapt to a certain slope plots of medium of sugarcane harvest
4. Transmission channel using independent floating drum of tubular, differential transmission patent technology, conveying a more open sugarcane cleaner
5. Whole machine adopts electric-hydraulic control system and the mode of a multiple job choice, one key operation, the harvest operation more convenient & comfortable
6. Carry big dipper, GPS tracking & positioning system, CAN bus technology,
7. Mobile network system, effective monitoring real-time sensor data, which can realize remote monitoring diagnosis
8. Hydraulic system heat dissipation independently with control rotate speed of fan and energy saving and lower noise9. All electric parts are using Europe or America brands. The connectors enjoys reliable quality with waterproof, dust proof and anti-loose
10. The sensor control technology which is capable of monitoring machine working state.
11. The machine walking adopting one-button operation, the diversion controlled by imported steering wheel with comfortable operation.
